Ever think a simple drawing could make taking care of your tires easier? A tire rotation chart works like a map, showing you exactly where each tire should go, whether your car pulls from the front or all the wheels do.
It breaks the task down into simple steps so checking your tires feels more like a quick pit stop than a chore. Just one quick look at this guide can help keep your ride safe and smooth for many miles.
Tire Rotation Diagram: Crisp visuals for clear driving
Rotating your tires every 5,000–8,000 miles keeps them wearing out evenly. In the diagram, you’ll see each tire spot marked with easy initials, LF (Left Front), RF (Right Front), LR (Left Rear), and RR (Right Rear), with simple arrows that show you the path to follow. It’s almost like checking your tire pressure as you check your fuel before a long drive.
If you drive a front-wheel-drive car, the diagram uses a forward cross pattern. That means the front tires drop down to the back on the same side, while the back tires move to the opposite front spot. For rear-wheel-drive vehicles, the pattern works in reverse: the rear tires move up to the front on the same side and the front tires switch across to the back. And if you have all-wheel drive, the tires swap diagonally in an X-pattern so that grip is balanced all around.
There’s also a small legend in the diagram. It tells you which tires are non-directional (these can be moved across either side without issue) and which ones are directional (they follow one set rotation). The clear arrows and labels give you a quick look at how to maintain solid tire performance, making it simple to keep your ride safe and smooth.
Step-by-Step Tire Rotation Diagram Guide
This guide shows you an easy way to swap your tires for a smoother ride. First, park your car on flat ground and use wheel chocks to keep it secure. The diagram makes it simple by showing which tire goes where.
- Start by loosening the lug nuts while your car is still on the ground. Think of it as giving your tires a quick hello before the heavy work begins.
- Next, lift the car using the factory jack points and safely secure it with jack stands. This steady setup lets you work with a clear mind.

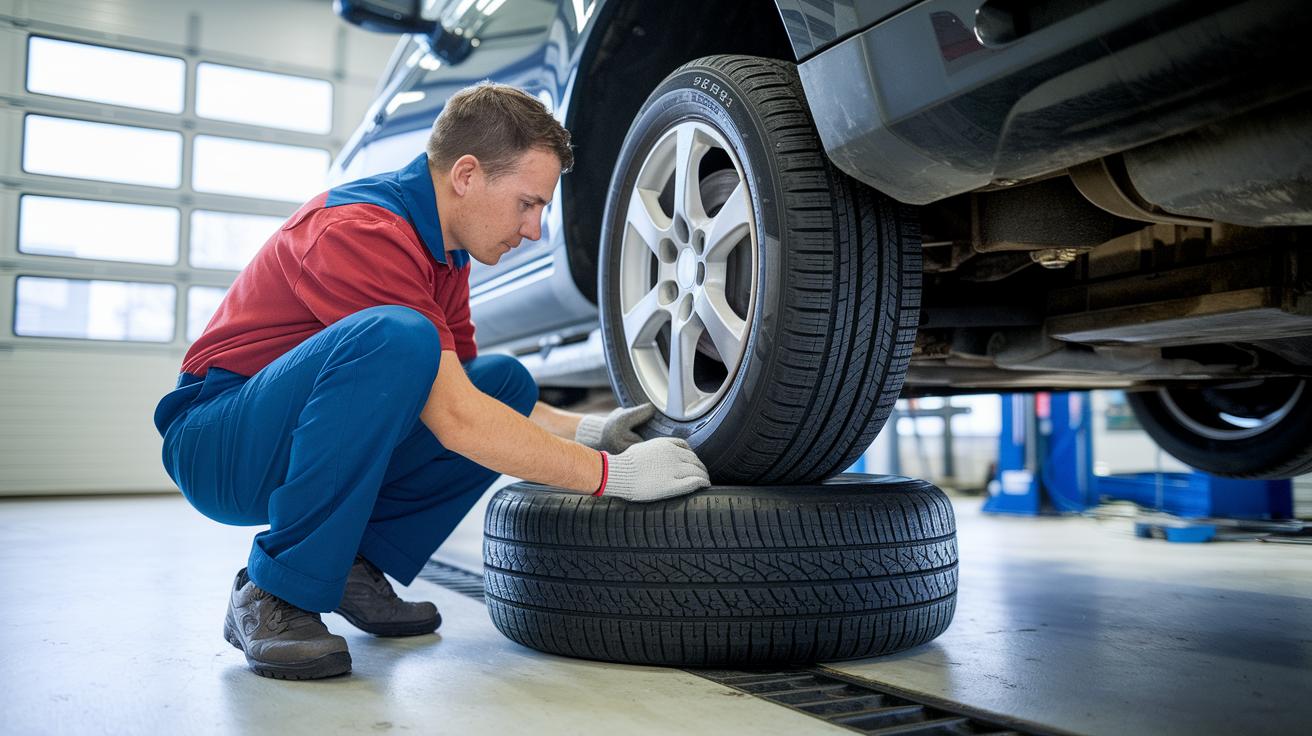

- Remove the tires completely and mark where each one came from. A simple label helps you follow the diagram easily.
- Now, follow the diagram’s arrows to move the tires to their new spots. Watch them closely so that every tire fits back just right.
- Once the tires are where they belong, hand-tighten the lug nuts and slowly lower the vehicle. This way, you can see everything is lined up properly.
- Finally, use a torque wrench to tighten the lug nuts to the manufacturer’s setting. This tool makes sure every wheel is secure.
Always remember to wear gloves for extra protection. Checking your torque measurements and using wheel chocks are great safety tips to keep you and your car safe on any road.
Tire Rotation Patterns Quick Reference
Here’s a handy guide that shows how to rotate your tires if your car is front-wheel drive, rear-wheel drive, or all-wheel drive. If you need more detailed, step-by-step help, check out the diagram section up above.
| Drivetrain | Rotation Pattern | Recommended Tire Type |
|---|---|---|
| FWD | Move the front tires to the back on the same side and bring the rear tires to the front on the opposite side (this is called a forward cross) | Non directional tires (tires that don’t have a specific rotation direction) |
| RWD | Switch the rear tires to the front on the same side and the front tires to the back on the opposite side (known as a rearward cross) | Non directional tires |
| AWD | Swap all four tires diagonally, creating an X-pattern | Non directional tires |
For example, consider this: "A simple rotation can extend the life of your tires by giving each tire a chance to face different road positions, kind of like how mixing up your meals keeps you feeling balanced."
Five-Tire Rotation Diagram Including a Spare
When your car comes with a full-size spare, it's a smart idea to rotate all five tires so they wear evenly. Think of your spare as just another tire on the team. First, shift the spare into the front left spot. Then, move the tire from the front left over to the rear left. Next, take the tire from the rear left and put it in the front right, and slide the tire from the front right over to the rear right. Finally, the tire from the rear right goes into the spare position.
This sequence, spare to front left, front left to rear left, rear left to front right, front right to rear right, and rear right to spare, helps each tire face different parts of the road. It might sound like a lot of steps, but it's really simple and effective. By rotating your spare along with the other tires, you even out the wear, making sure your car stays balanced, brakes well, and handles smoothly.
Directional vs. Non-Directional Tire Rotation Map

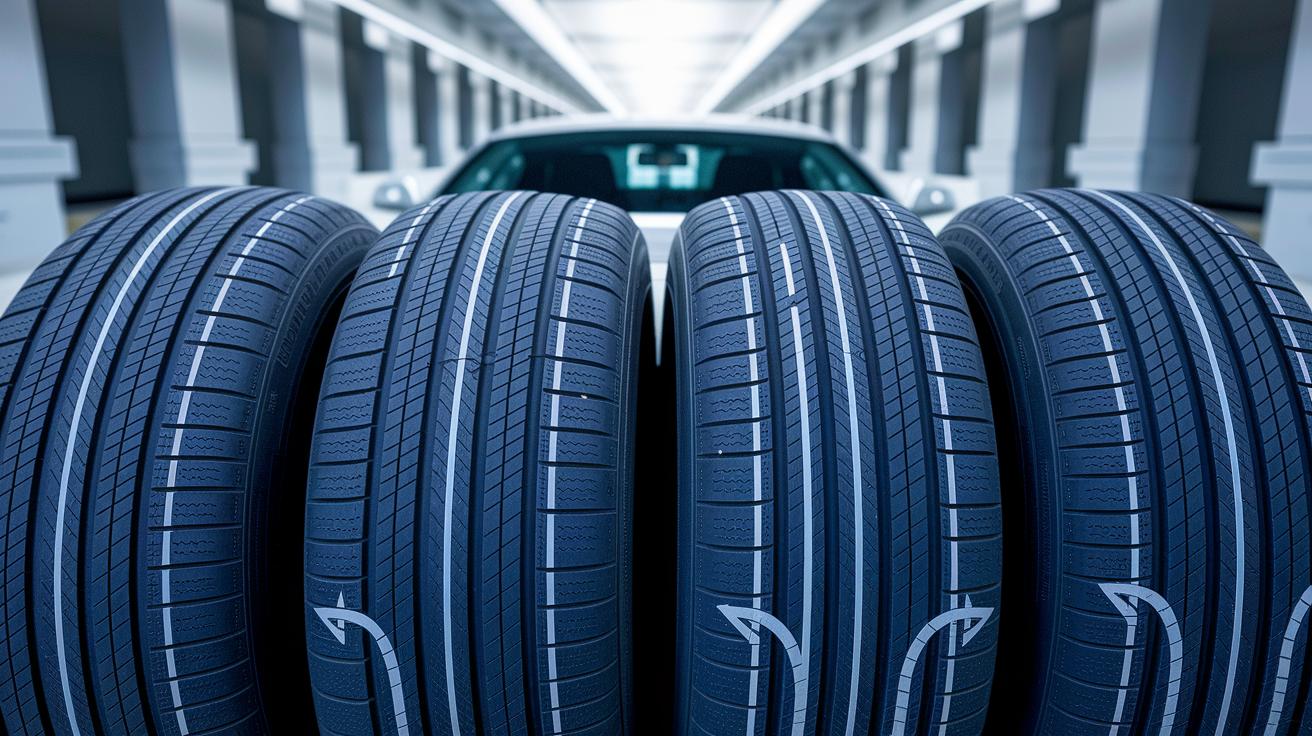

Directional tires have a set rolling path, kind of like following a one-way road, and you can spot this by the solid arrows in the diagram. They work best when moving straight forward or back on the same side, which helps keep the tread (the grooves on your tire) aligned just right. For example, if you see an arrow pointing up, that tire should stay on the same side at either the front or the back.
Non-directional tires, shown by dashed arrows, give you more freedom. Those dashed lines mean you can move the tire from front to back or even side to side. Imagine those arrows swirling, it’s like the tire can easily swap spots. So, you might even move a tire from the left front to the right rear as long as the tire design matches.
For vehicles with mixed-size axles, only a side-to-side swap is allowed. This way, you avoid placing a tire on an axle it wasn’t made for.
The diagram uses both solid and dashed arrows to show all the rotation options clearly, merging the differences in tire types with the right rotation steps in one simple guide.
Maintenance Benefits of the Tire Rotation Diagram
Keeping up with tire rotations can actually boost your tire life by 20 to 25 percent and make sure the wear on your tires stays even (tread wear is how fast the tire's surface wears down). When you follow a simple tire rotation diagram, you're giving each tire its chance to shine. This means better braking, more responsive handling, and a steady grip on the road. Just think of it like sharing the driving spotlight, switching your tires every 5,000 to 8,000 miles (usually when you get your oil changed) helps reduce vibrations and keeps repair costs low.
A regular rotation plan not only makes your ride safer by preventing uneven wear, but it also helps avoid issues like sudden changes in braking or poor grip on wet roads. If one tire wears out quicker than the others, it can throw off your balance and affect steering. The rotation diagram is like a friendly guide that shows you how to move your tires around so each one gets equal wear and stays in good shape.
This easy step isn’t just about giving your tires a longer life, it also saves you cash by staving off early replacements and expensive fixes. Ever had that moment when a quick check made a big difference? That’s what a good tire rotation does for your car; it keeps your ride smooth, reliable, and safe. Stick with your car’s recommended rotation schedule, and you’ll be set for a safer, smoother journey every time you hit the road.
Final Words
In the action, the article walked through everything from a clear tire rotation diagram to step-by-step guidance for swapping tires. The tips covered the best patterns for FWD, RWD, AWD, and even how to handle a spare. It explained the differences between directional and non-directional tires and showed how proper rotation boosts tire life and handling. With a solid tire rotation diagram as your guide, you're set up to keep your vehicle safe and running smoothly. Enjoy that reliable, well-balanced ride.
